Edible Oil Filling Line
Our edible oil filling line delivers a seamless, hygienic solution for cooking oil packaging, covering storage, 3in1 filling, labeling, coding, and end-of-line packing for consistent, high-efficiency production.
We provide turnkey services from design to commissioning and training, seamlessly integrated into your edible oil plant for reliable, scalable production.
- Support 250ml-5L Oil Bottle Size
- 1000-30000BPH Filling Speed
- Suitable for Vegetable Oil Like Palm and Olive Oil
What Equipment Can We Provide?

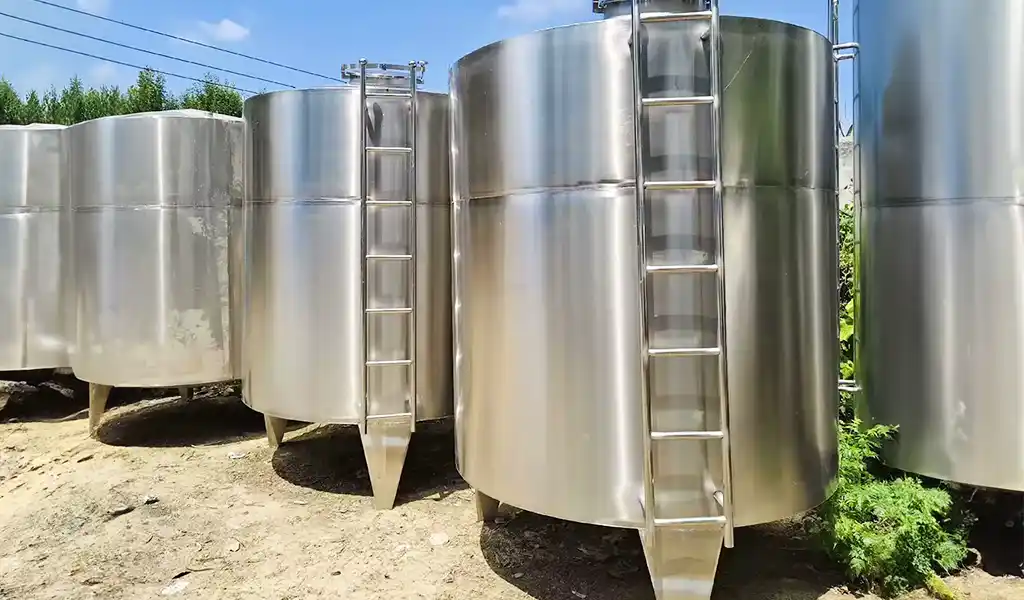

Oil Storage Equipment
Ensure safe, hygienic storage and stable, continuous oil supply to the filling machine, with precise temperature control and level monitoring to maintain consistent filling accuracy, including:
- Stainless steel oil storage tanks (SS304 / SS316)
- Food-grade transfer pumps
- Optional oil heating system (for viscous oils like palm oil)
- Level sensors and temperature control units

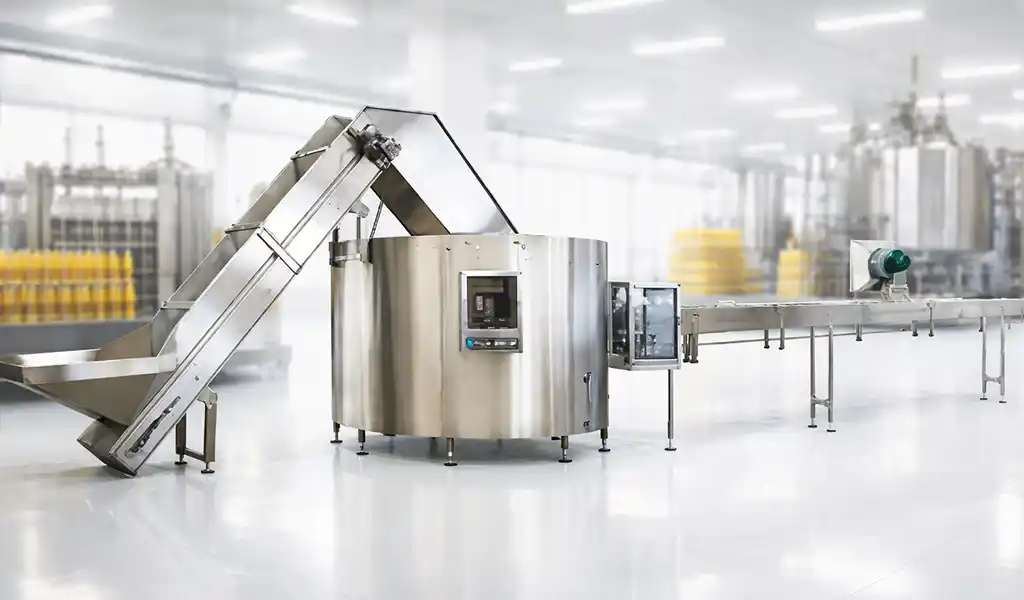

Bottle Unscrambling Equipment
Efficiently arranges and orients empty bottles, feeding them onto the production line using air conveyors, ensuring smooth, automated bottle handling for consistent and fast filling.
- Automatic bottle unscrambler
- Air conveyor or belt conveyor
- Bottle orientation and positioning units

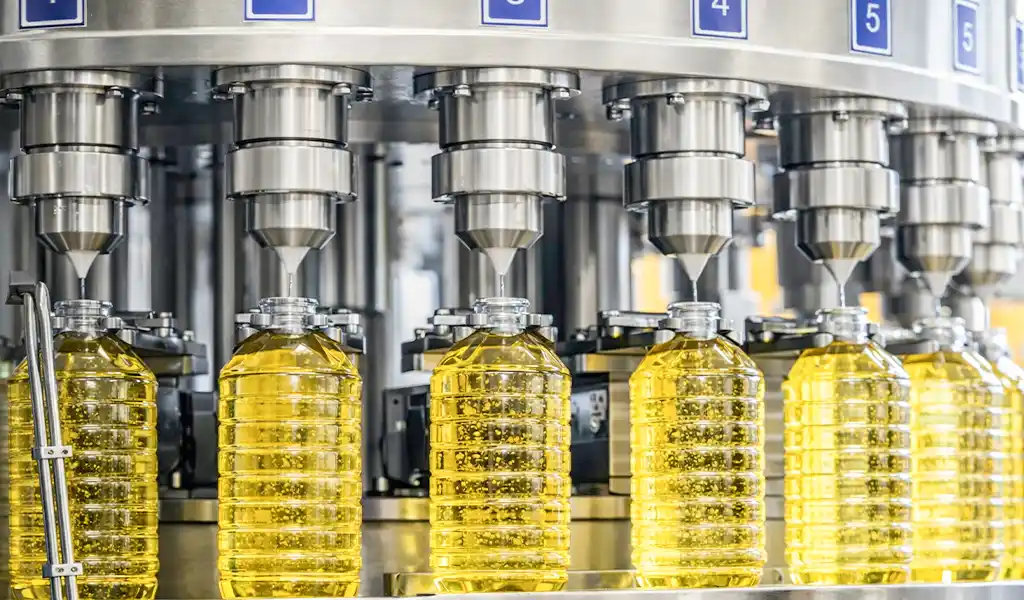

Vegetable Oil Filling Machine
Combines rinsing, filling, and capping in a single compact unit. Utilizing gravity-based operation, it delivers accurate filling, high throughput, and reduced product loss for efficient production.
- Supports multiple bottle sizes with easy changeover
- Anti-drip nozzles prevent contamination and drips
- PLC + HMI panel for easy operation
- CIP-ready design for automatic cleaning

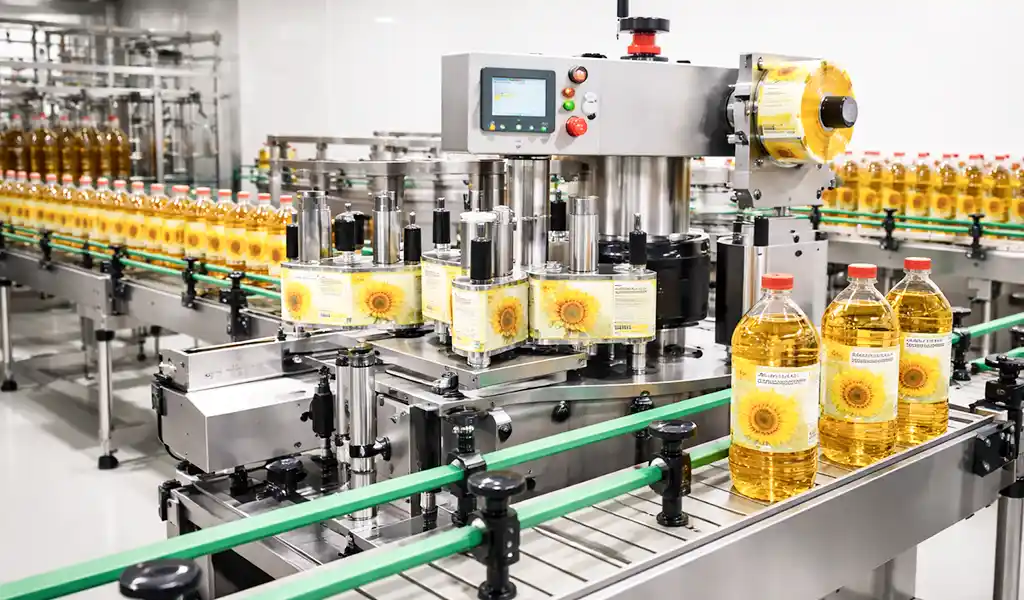

Auto Labeling Machine
Ensure accurate, high-speed label application to bottles, improving brand presentation while meeting regulatory standards, including batch numbers and expiration dates for compliance.
- Shrink Sleeve Label Machine
- Self-Adhesive Labeling Machine
- Paste Labeling Machine
Shrink Sleeve Label Machine
Adjustable speed up to 300 BPM, servo-driven control, low sleeve waste rate, and seamless integration with automated edible oil filling lines.
Self-adhesive Labeling Machine
Supports wrap-around and front-and-back labeling, fast changeover, PLC control, compatible with various bottle types, delivering labeling accuracy within ±1 mm.
Paste Labeling Machine
Accurately applies paste labels on oil containers, supporting viscous surfaces, stable adhesion, precise positioning, and smooth operation in edible oil filling environments.

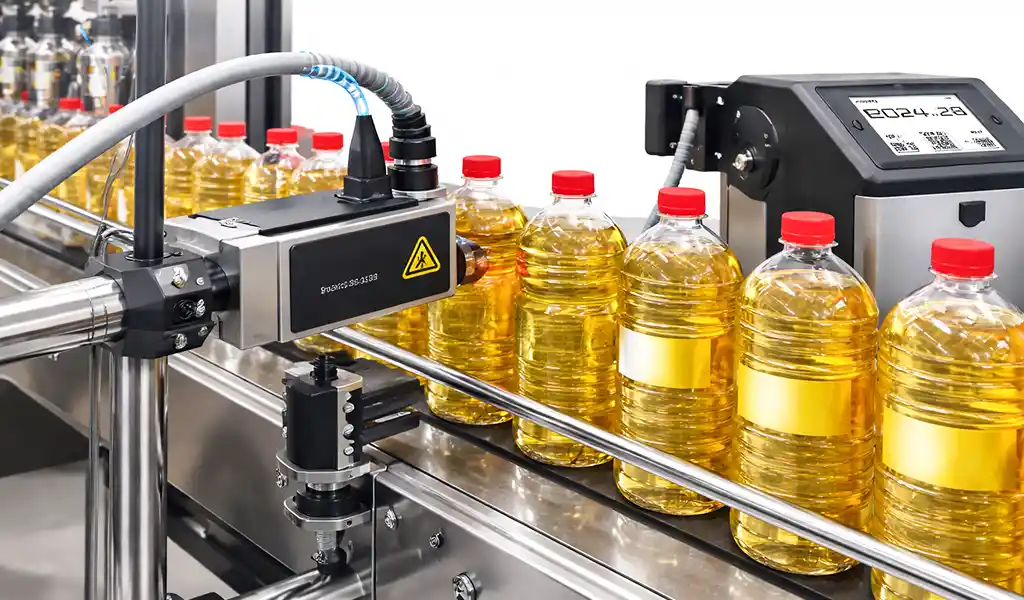

Coding and Printing Equipment
Ensure clear date, batch, and traceability marking on edible oil packaging, supporting regulatory compliance, product identification, quality control, and efficient supply chain management.
- Inkjet Printer (date, batch, expiry)
- Laser Marking Machine

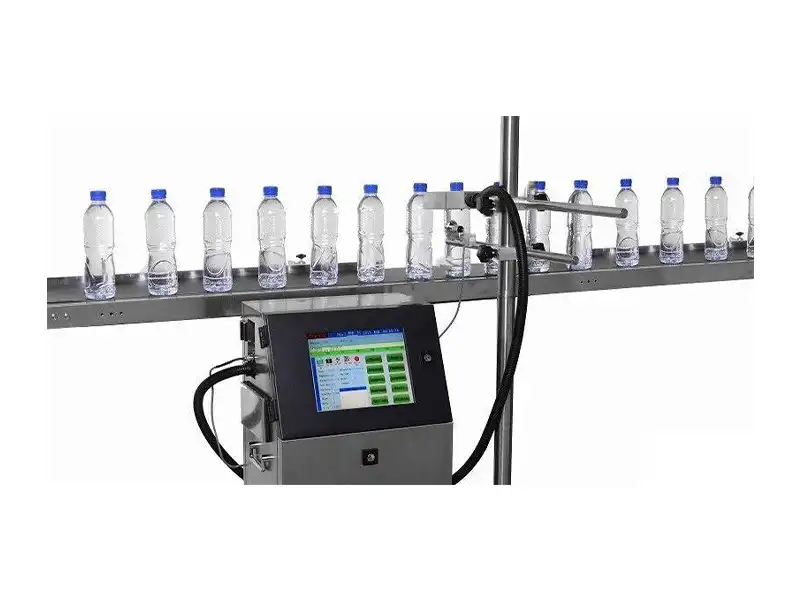

Inkjet Printer
High-speed non-contact printing ensures clear date and batch codes on oily surfaces, supporting variable data, anti-smudge performance.

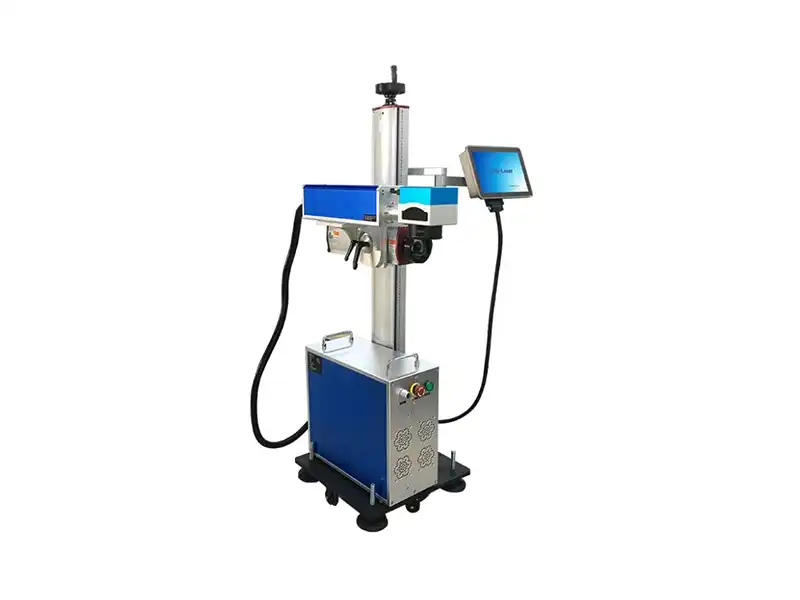

Laser Marking Machine
High-speed non-contact marking ensures clear batch codes, dates, and traceability; oil-resistant printing, low maintenance.

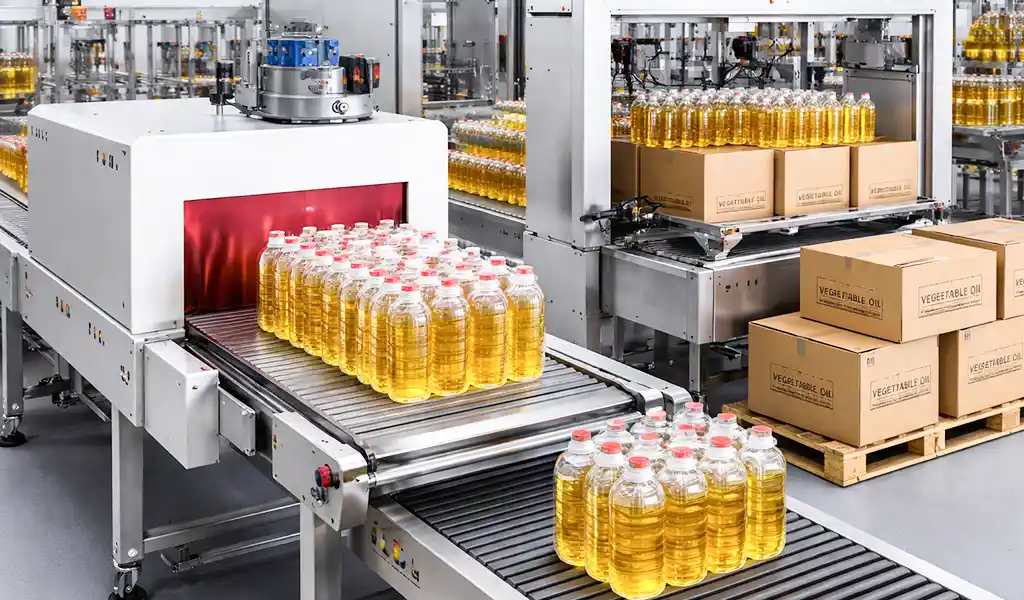

Auto Packing Machine
Group filled edible oil bottles for shrink wrapping or carton packaging, protecting products during transport, improving packing efficiency, and reducing labor costs in edible oil filling lines.
- Auto Shrink Wrapping Machine
- Auto Carton Packing Machine

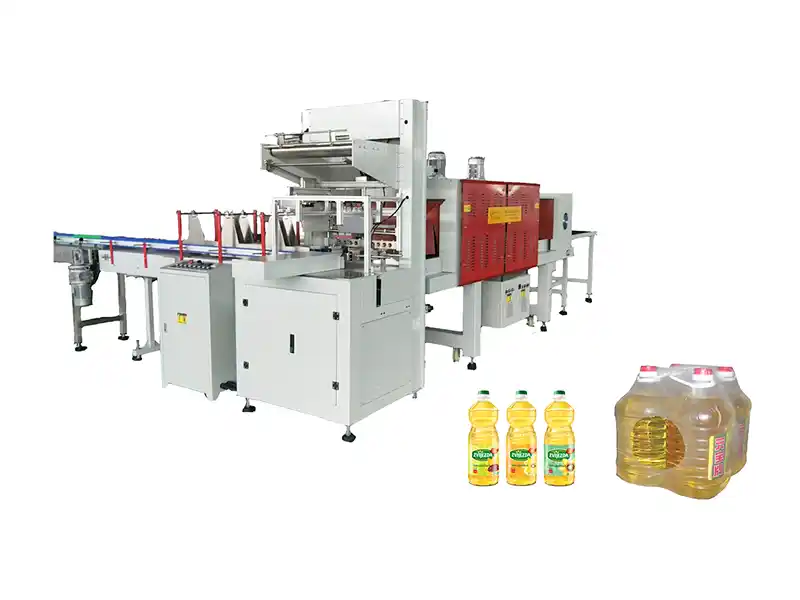

Auto Shrink Wrapping Machine
Automatic film wrapping and heat shrinking ensure stable bundles, tight sealing, and efficient downstream palletizing for oil bottles & containers.

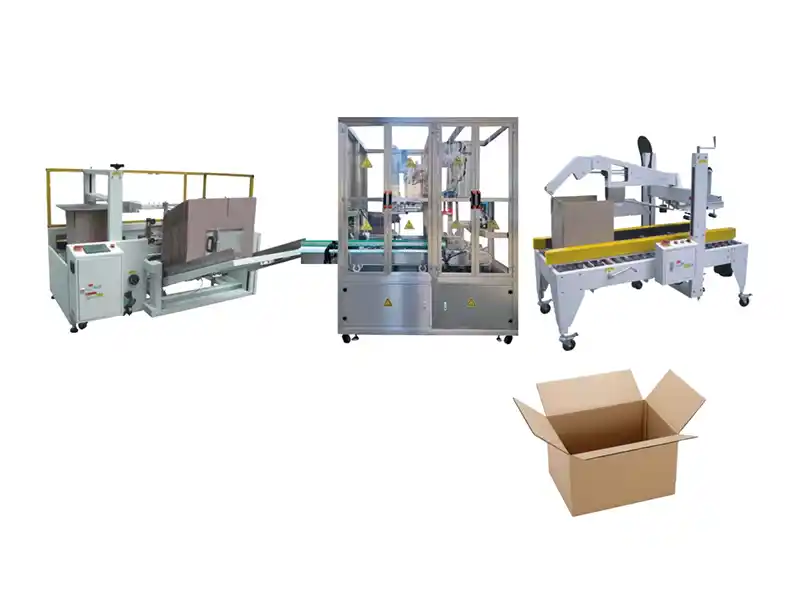

Auto Carton Packing Machine
Integrates seamlessly with edible oil filling lines, supporting multiple bottle sizes, automatic counting, packing, and real-time fault monitoring.
Applicable Types of Edible Oils
Palm Oil
Requires heated filling system at 40–55°C to prevent solidification; high-viscosity pumps & temperature-controlled pipelines recommended.
Olive Oil
Low-viscosity oil requires high-precision volumetric fillers; nitrogen flushing recommended to limit oxidation and preserve quality.
Soybean Oil
Medium-viscosity oil suitable for gravity or piston fillers; standard filling temperature 20–30°C ensures stable flow and accuracy.
Sunflower Oil
Light oil with low foaming tendency; high-speed rotary fillers supported, typical filling accuracy within ±0.5%.
Peanut Oil
Slightly higher viscosity; piston filling preferred, allergen control and dedicated pipelines recommended to avoid cross-contamination.
Sesame Oil
High aroma and low filling volume; requires precision fillers, slow filling speed, and oxygen-reduction systems for flavor protection.
Corn Oil
Stable viscosity and wide temperature tolerance; suitable for automated high-speed filling lines up to 12,000 bottles/hour.
Coconut Oil
Solidifies below 24°C; requires heated tanks and insulated pipelines, filling temperature typically maintained at 30–40°C.
Packaging Types for Finished Products
Our edible oil filling line supports various packaging formats to meet different market demands, capacity requirements, and end-use applications.
Bottle Packaging
Suitable for retail oils using PET, HDPE, or glass bottles, supporting 50 ml–5 L volumes with screw, flip, or tamper-evident caps.
Pouch & Sachet Packaging
Ideal for single-use or promotional oil packs, supporting flexible pouches and sachets with integrated or standalone filling systems.

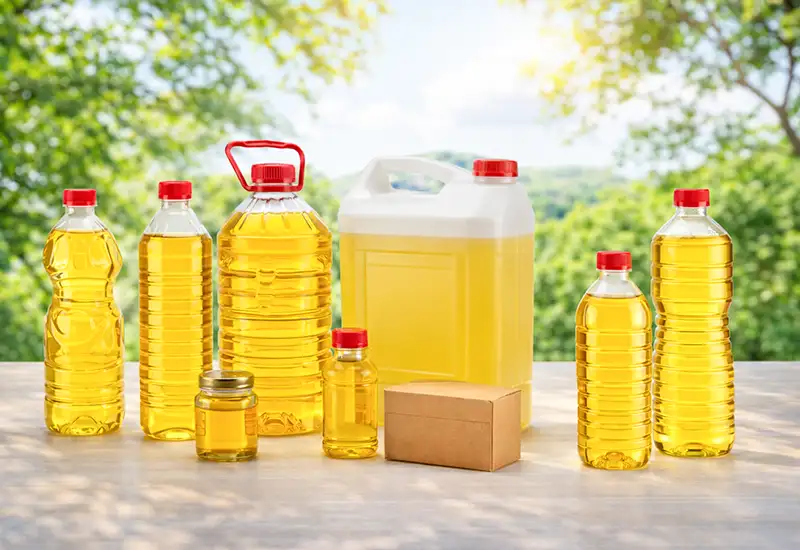

Customized Packaging Solutions
Supports irregular bottles, special volumes, and multi-size production on one line, with scalable design for future capacity upgrades.

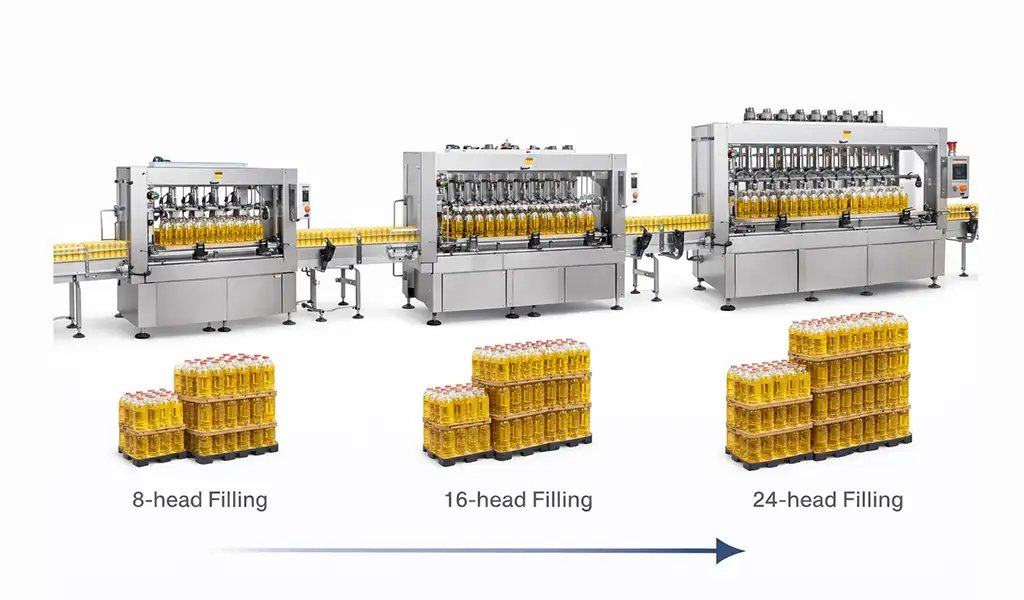

Edible Oil Filling Line Solutions by Production Capacity
To meet different bottle sizes and output requirements, we offer multiple edible oil filling line configurations. By adjusting the number of filling heads, an optimal balance between efficiency, investment cost, and line flexibility is achieved.
Small-capacity Solution (6–8 Filling Heads)
- Ideal for start-up producers or small-batch, multi-size production.
- 50–250 ml bottles: approx. 1,600–3,200 BPH
- 500–1000 ml bottles: approx. 1,300–2,500 BPH
- Low investment cost and flexible format changeovers
Medium-capacity Solution (12–18 Filling Heads)
- Designed for stable, continuous production with balanced performance.
- 50–250 ml bottles: approx. 3,200–4,500 BPH
- 500–1000 ml bottles: approx. 2,800–3,600 BPH
- Suitable for long-term operation and integration with labeling and packing systems
High-capacity Solution (>18 Filling Heads)
- Built for large-scale, high-efficiency edible oil production.
- Small bottles: up to 4,700–5,500 BPH
- 1 L bottles: approx. 4,300 BPH
- Compatible with fully automatic packing and palletizing systems for reduced labor costs
Frequently Asked Questions
What types of edible oils can the filling line handle?
The line supports palm oil, olive oil, soybean oil, sunflower oil, peanut oil, sesame oil, corn oil, and coconut oil.
What bottle sizes are supported?
Standard systems handle bottles from 250 ml to 5 L, with optional configurations for drums, jerry cans, or IBCs.
What filling accuracy can be achieved?
Filling accuracy typically reaches ±0.3% to ±0.5%, depending on oil viscosity and filling method.
Is the filling line suitable for high-viscosity oils?
Yes. Heated tanks, insulated pipelines, and piston pumps are used for high-viscosity or solidifying oils like palm and coconut oil.
Does the system meet food safety standards?
All contact parts are made of food-grade stainless steel (SUS304/SUS316) and comply with food hygiene regulations.
How easy is it to change oil types or bottle sizes?
Quick-change components and adjustable settings allow fast product changeover, typically within 30–60 minutes.
