Carton Packing Machine
- Patented lever-type feeding system ensures high stability and low failure rate.
- Exceptional adaptability for both empty and heavy cartons of various sizes.
- Stable packaging efficiency, unaffected by carton length, ensuring reliable performance.
- Optional spare film roll feature reduces film change frequency, enhancing user convenience.
Product Details:
Our newly developed lever-type carton packing machine addresses the challenges faced by previous models, offering enhanced efficiency, stability, and adaptability for packaging a variety of carton sizes. Based on extensive technical research and the lessons learned from our earlier models, this advanced machine provides a reliable solution for packaging needs with diverse carton specifications.
Key Features:
Patented Lever-Type Carton Feeding Mode
-
-
Features a unique, patented lever-type carton feeding system, ensuring high stability and a low failure rate during operation.
-
Exceptional Adaptability
- Designed to handle both empty and heavy cartons with ease, this machine guarantees reliable carton feeding and efficient packaging across a wide range of carton sizes.
Stable Packaging Efficiency
-
-
The packaging efficiency remains stable regardless of carton length, making it a highly efficient machine for various packaging needs.
-
Enhanced Spare Film Roll Function
-
-
An optional feature that significantly reduces the frequency of film changes, offering greater convenience and user-friendliness.
-

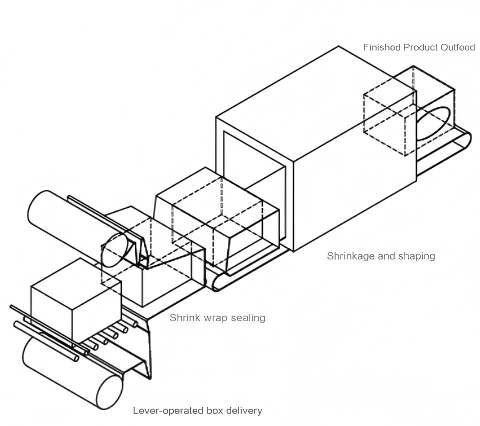

Product Diagram:
Product Parameters:
| Model | DS-F500-11 |
| Power supply | 3PH 380V150HZ |
| Air source (MPa) | ≥0.6 |
| Equipment dimensions (mm) | L6000xW1400xH2200 |
| Packaging eficiency(box/hour) | 480-720 |
| Maximum selling and cutting length/mm) | 900 |
| Packaging machine power/shrinking machine power (KW) | 2.8KW/38 |
| Entrance height(mm) | 900±30 |
| Maximum passing dimension (mm) | L<900 W<600 H<500 |
| Packaging form | cuff type |
