Heat Shrink Packaging Machine
- High-speed automated packaging, achieving 10–15 packages per minute.
- Advanced constant-temperature sealing ensures clear, secure seals at 140–160°C.
- Efficient heat-shrink system with 1800mm tunnel for uniform shrinkage.
- Energy-saving three-layer insulation delivers fast heating and reduced power use.
Product Details:
Designed for fully automatic beverage packaging lines, this machine integrates conveying, bottle sorting, film wrapping, sealing, cutting, shrinking, and cooling into one seamless system. It delivers efficient, stable, and energy-saving performance for beer, soft drinks, purified water, fruit juices, and dairy product production.
Key Features
- Integrates bottle sorting, film wrapping, sealing, heat shrinking, and cooling to support high-speed, continuous production.
- Equipped with world-leading constant-temperature film heat-sealing, ensuring clear, firm, and reliable sealing.
- The fast-cooling structure in the sealing system ensures stronger seals even during rapid production cycles.
- PLC program automation ensures stable performance, reliable operation, and reduced manual intervention.
- Imported guide rod cylinders improve accuracy, stability, and long-term durability under continuous operation.
- Inductive switching controls film supply precisely, ensuring accurate film length and effectively reducing material waste.
- All conveyors use frequency-controlled speed adjustment for smooth, stable, and shock-free product transport.
- Unique heat shrink tunnel with hot-air circulation provides uniform heating, resulting in tight, smooth, and visually appealing shrink results.
- Three-layer insulation minimizes heat loss with fast temperature rise, boosting energy efficiency.
- Rapid cooling brings packaging film to a high-strength state quickly, improving stacking, storage, and transportation performance.
- Simple adjustments allow fast changeovers for various packaging combinations and bottle types, supporting multi-product production lines.
Product Advantages at a Glance
- High efficiency for fully automatic packaging
- Stable sealing quality with constant-temperature technology
- Strong shrink performance with uniform heating
- Reduced film waste and cost optimization
- Adaptable to multiple bottle types and packaging combinations
Product Applications
- Beer packaging lines
- Carbonated soft drink plants
- Purified and mineral water production
- Fruit juice bottling factories
- Dairy and flavored beverage packaging
- High-speed automated beverage manufacturing facilities

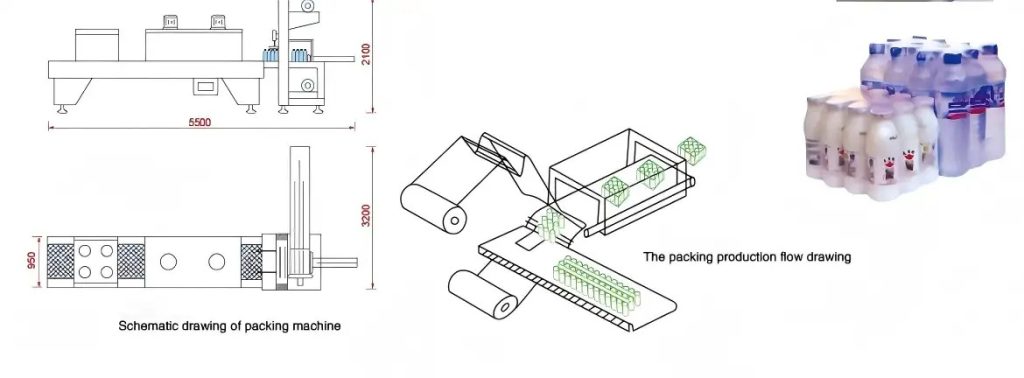

Product Diagram
Product Parameters
| Overall dimension for the whole unit | L5500mm × W3200mm × H2100mm |
| Thermal shrinkage passage dimension | L1800mm × W650mm × H450mm |
| Max package dimension | L600mm × W400mm × H350mm |
| Transfer belt dimension | 10–15 pcs/minute |
| Transfer belt height | 800–1200mm |
| Sealing and cut time/temperature | 0.5–1.5s, 140°C–160°C (About) |
| Operating power supply/power | (Three-phase, five-wire) 380V, 19kW |
| Operating air pressure | 0.6–0.8 MPa |
| Air consumption | 0.5 m³/minute |
