In modern beverage and liquid food production, the monoblock filling machine has become the heart of packaging lines. Designed to integrate rinsing, filling, and capping within a single compact structure, this system enhances efficiency, precision, and hygiene—key factors in high-volume operations.
Yet, not all liquids can be filled under the same conditions. Some products require high-temperature sterilization to ensure microbiological safety, while others must be kept at low temperatures to preserve flavor and functional properties. The choice between hot filling and cold filling is therefore critical, directly influencing product quality, shelf life, and packaging cost.
What Is a Monoblock Filling Machine?
A monoblock filling machine is an integrated system that combines three essential processes—rinsing, filling, and capping—within one fully automated unit. Instead of operating separate machines for each stage, manufacturers use a monoblock to streamline the production line, minimize contamination, and improve space efficiency.
Key Components
- Rinsing station: Cleans bottles or jars using sterilized water or air.
- Filling station: Dispenses liquid products with high accuracy under controlled temperature and pressure.
- Capping station: Immediately seals the containers to prevent contamination.
Main Advantages
- Reduced footprint and maintenance costs.
- Continuous operation for higher productivity.
- Easy cleaning and sterilization (CIP/SIP systems).
- Suitable for PET bottles, glass bottles, and jars.
Monoblock filling machines are widely used in beverage, dairy, sauce, and pharmaceutical industries, where hygiene and consistency are vital.
Understanding Hot Filling
Definition and Process
Hot filling is a method in which the liquid product is filled into containers at elevated temperatures—usually between 85°C and 95°C (185°F–203°F). The high temperature not only sterilizes the product but also helps disinfect the interior of the bottle, cap, and airspace, minimizing the risk of microbial growth.
Typical Applications
- Fruit juices and nectars
- Tea and herbal beverages
- Isotonic and energy drinks
- Non-carbonated flavored waters
- Tomato and vegetable juices
Process Steps
- Pre-heating and sterilization: The beverage is pasteurized to eliminate bacteria, yeast, and mold.
- Hot filling: The product is filled into heat-resistant bottles or jars at 85–95°C.
- Capping: Containers are capped instantly while the beverage remains hot.
- Inversion (optional): Bottles may be inverted briefly to sterilize the cap interior.
- Cooling: The filled containers are gradually cooled using air or water spray tunnels to prevent deformation and preserve flavor.
Equipment Requirements
- Heat-resistant monoblock filling system
- Temperature-controlled filling valves
- Cooling tunnel or spray conveyor
- PET or glass containers designed for thermal resistance
Understanding Cold Filling
Definition and Process
Cold filling, sometimes called aseptic filling, is performed at low or ambient temperatures—typically between 4°C and 10°C (39°F–50°F). Unlike hot filling, it depends on sterile conditions to ensure safety. The beverage and the packaging are both sterilized before contact, ensuring that no microorganisms survive.
Typical Applications
- Mineral and purified water
- Carbonated soft drinks (CSD)
- Dairy and yogurt drinks
- Beer and functional beverages
- Cold brew coffee and tea
Process Steps
- Sterilization: Bottles and caps are sterilized using hydrogen peroxide, ozone, or ultraviolet treatment.
- Cooling and storage: The liquid product is cooled after pasteurization to 4–10°C.
- Aseptic filling: The sterile beverage is filled into the sterile bottles in a cleanroom or enclosed aseptic chamber.
- Capping: Sealing is performed immediately within the sterile zone.
- Storage: The finished product is stored in temperature-controlled conditions.
Equipment Requirements
- Aseptic monoblock filling machine with HEPA filtration
- Cleanroom-grade enclosure
- CIP/SIP systems for sterilization
- Air purification and overpressure control

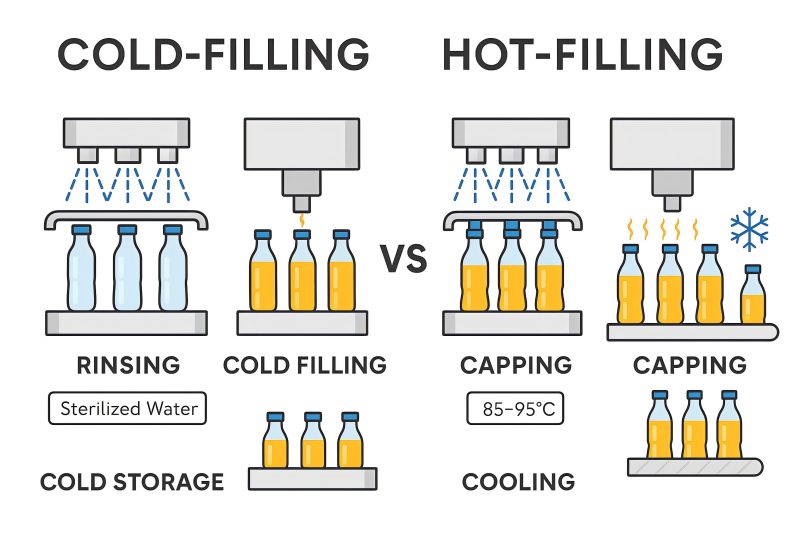

Technical Comparison: Hot Filling vs Cold Filling
The following table summarizes the major technical differences between the two methods:
| Parameter | Hot Filling | Cold Filling (Aseptic) |
| Filling Temperature | 85–95°C | 4–10°C |
| Sterilization Method | Thermal sterilization of liquid and bottle | Chemical or UV sterilization |
| Product Type | Non-carbonated beverages (juices, teas) | Carbonated or heat-sensitive beverages |
| Bottle Material | Heat-resistant PET or glass | Standard PET or glass |
| Energy Consumption | Higher (due to heating & cooling) | Lower in operation but higher initial cost |
| Microbiological Safety | Achieved through heat | Achieved through aseptic control |
| Shelf Life | Long (6–12 months) | Moderate to long (3–9 months depending on product) |
| System Complexity | Relatively simple | Requires sterile environment and maintenance |
| Investment Cost | Lower initial cost | Higher due to aseptic design and technology |
Advantages and Disadvantages
Hot Filling Advantages
- Reliable sterilization: High temperature ensures total microbial kill.
- No chemical sterilants: Reduces risk of residue contamination.
- Lower equipment cost: Simpler structure compared to aseptic systems.
- Longer shelf life: Ideal for shelf-stable drinks without preservatives.
Hot Filling Limitations
- Not suitable for carbonated drinks: Heat causes gas expansion and foaming.
- Potential flavor degradation: Sensitive nutrients like vitamins and aromas may diminish.
- Higher energy usage: Requires heating and cooling stages.
- Special packaging: Only heat-resistant PET or glass bottles can be used.
Cold Filling Advantages
- Preserves flavor and nutrients: Ideal for premium and functional beverages.
- Compatible with carbonated drinks: CO₂ retention is maintained.
- Flexible container options: Standard PET or lightweight bottles can be used.
- Lower energy consumption: No heating or cooling needed during filling.
Cold Filling Limitations
- High equipment investment: Aseptic systems are more complex and expensive.
- Strict hygiene management: Requires cleanroom-grade environment and trained operators.
- Shorter shelf life if not aseptic: Non-aseptic cold filling can shorten storage stability.
- Higher maintenance cost: Frequent sterilization cycles and filter replacements are required.
Selecting the Right Filling Method
Choosing between hot filling and cold filling depends on a combination of product characteristics, packaging material, and target shelf life.
Considerations:
Product Nature
- Acidic, non-carbonated beverages (e.g., juices, tea): hot filling preferred.
- Carbonated, dairy, or functional beverages: cold filling or aseptic preferred.
Bottle Type
- Hot filling demands heat-resistant PET or glass (thicker wall).
- Cold filling allows lightweight or custom-shaped PET bottles.
Shelf Life Expectations
- Hot filling ensures longer shelf life for non-refrigerated storage.
- Cold filling requires refrigeration unless aseptic.
Production Scale and Budget
- Hot filling lines are cost-effective for medium-scale juice factories.
- Cold/aseptic filling systems suit large-scale, diversified production.
Energy Efficiency Goals
- Hot filling requires higher energy due to heating and cooling processes.
- Cold filling systems, though expensive, achieve lower long-term energy cost.
Integration of Monoblock Design for Each Method
Both hot and cold filling processes can be executed within monoblock configurations, but their design specifications differ significantly.
Hot Fill Monoblock
- Equipped with temperature-controlled filling valves.
- Features rotary rinsers using sterilized hot water.
- Incorporates high-temperature resistant seals and gaskets.
- Often paired with air-cooling tunnels or spray cooling conveyors after capping.
Cold Fill Monoblock
- Built with aseptic chambers and positive pressure air filtration (HEPA filters).
- Rinsing section uses chemical sterilants or UV instead of hot water.
- Filling valves are electromagnetic or volumetric for precision under low temperatures.
- Capping occurs in a sterile, sealed environment to prevent airborne contamination.
Both systems share automation through PLC control and touch-screen HMIs, enabling operators to switch recipes, monitor temperatures, and maintain consistent production rates.
Real-World Example: Hot Fill vs Cold Fill Production Lines
Case 1: Hot Fill Juice Production
A beverage factory producing fruit juice adopts a hot fill monoblock line with 24 filling heads. The process runs at 90°C, filling PET bottles resistant to heat deformation. After filling, bottles are capped, inverted for sterilization, and cooled in a water spray tunnel.
Result: 12-month shelf life without preservatives; minimal bacterial count; moderate energy use.
Case 2: Cold Fill Water and Tea Line
Another manufacturer invests in a cold fill monoblock system operating at 6°C. The product (flavored water and green tea) is filled into lightweight PET bottles in a Class-100 cleanroom.
Result: Retains aroma and antioxidant content; flexible bottle design; slightly higher operating cost due to sterilization maintenance.
These examples highlight that both technologies serve distinct market demands—hot filling emphasizes safety and durability, while cold filling emphasizes flavor integrity and packaging freedom.
Energy Efficiency and Sustainability Considerations
Modern beverage producers increasingly prioritize energy efficiency and carbon reduction. In this context:
- Hot filling consumes more thermal energy for heating and cooling, but newer systems recover waste heat through heat exchangers.
- Cold filling eliminates heating energy but depends on refrigeration and air purification, leading to different energy footprints.
- Hybrid solutions, such as medium-temperature filling (60–70°C) or dual-mode monoblocks, offer a balanced compromise.
Moreover, advanced monoblock systems integrate servo-driven control, CIP cleaning optimization, and recyclable lightweight bottle designs, aligning with global sustainability goals.
Recent Innovations in Monoblock Filling Machines
Technology advancements continue to push the boundaries of filling performance:
- Electronic volumetric filling: Delivers precise dosage without mechanical contact.
- Automatic sterilization systems: Reduce downtime between product changes.
- Smart sensors and AI monitoring: Detect temperature deviation, pressure loss, or contamination risks in real time.
- Quick-change filling heads: Support multi-product versatility between juice, milk, and soda lines.
- Energy-saving servo motors and insulated tanks: Lower overall energy consumption.
These innovations make it possible for a single monoblock system to handle both hot and cold filling through modular adaptation—a major advantage for manufacturers producing a wide beverage portfolio.
The debate between hot filling and cold filling in monoblock filling machines centers on balancing product safety, flavor preservation, and operational cost.
- Hot filling remains the trusted method for non-carbonated, heat-resistant beverages—offering microbial safety, simplicity, and long shelf life.
- Cold filling (aseptic) caters to modern health drinks, carbonated beverages, and sensitive products where freshness and sensory quality matter most.
Ultimately, the best choice depends on the product type, packaging material, investment level, and target market.
As monoblock filling technology continues to evolve—with smarter control systems, aseptic integration, and sustainability-driven design—manufacturers now enjoy greater flexibility than ever.
Whether filling hot juice or chilled tea, a well-configured monoblock system ensures efficiency, hygiene, and reliability across the production line.
